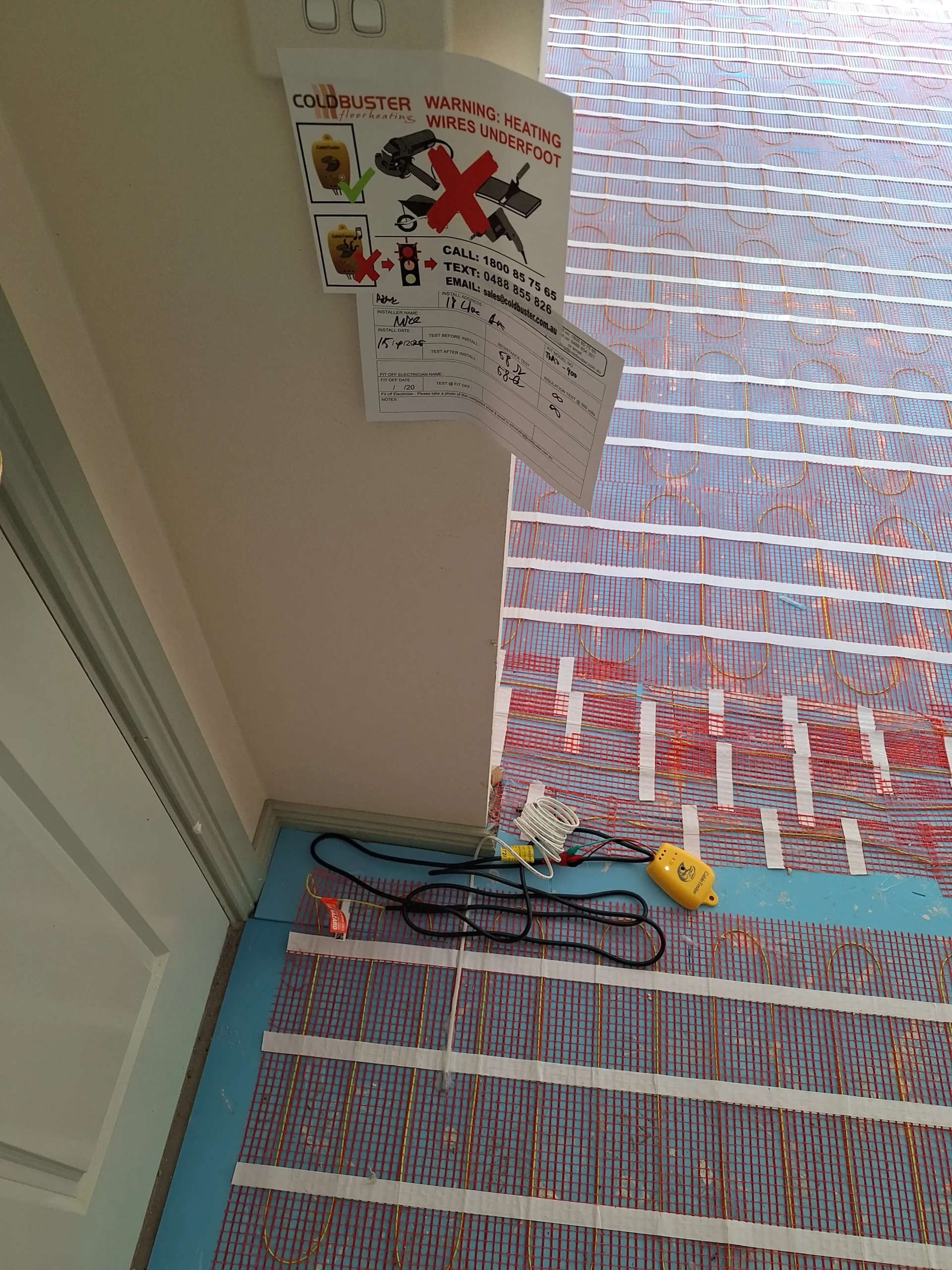

Electric under tile heating with 3 meter cold tail and continuity monitor

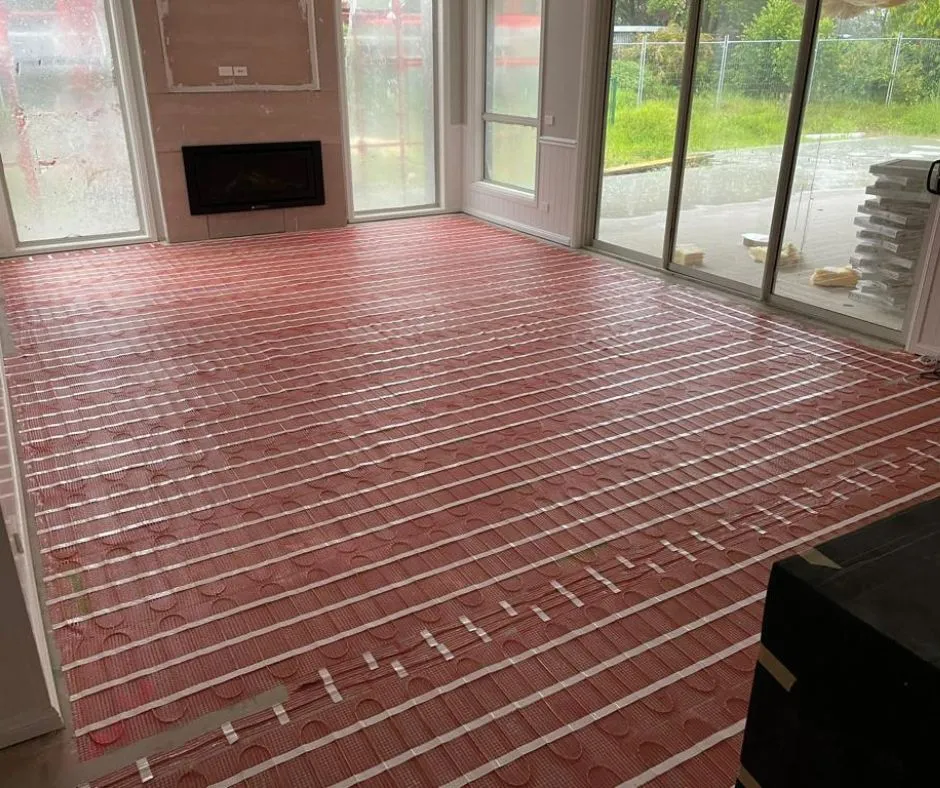

Under Tile heating installed in a living area.

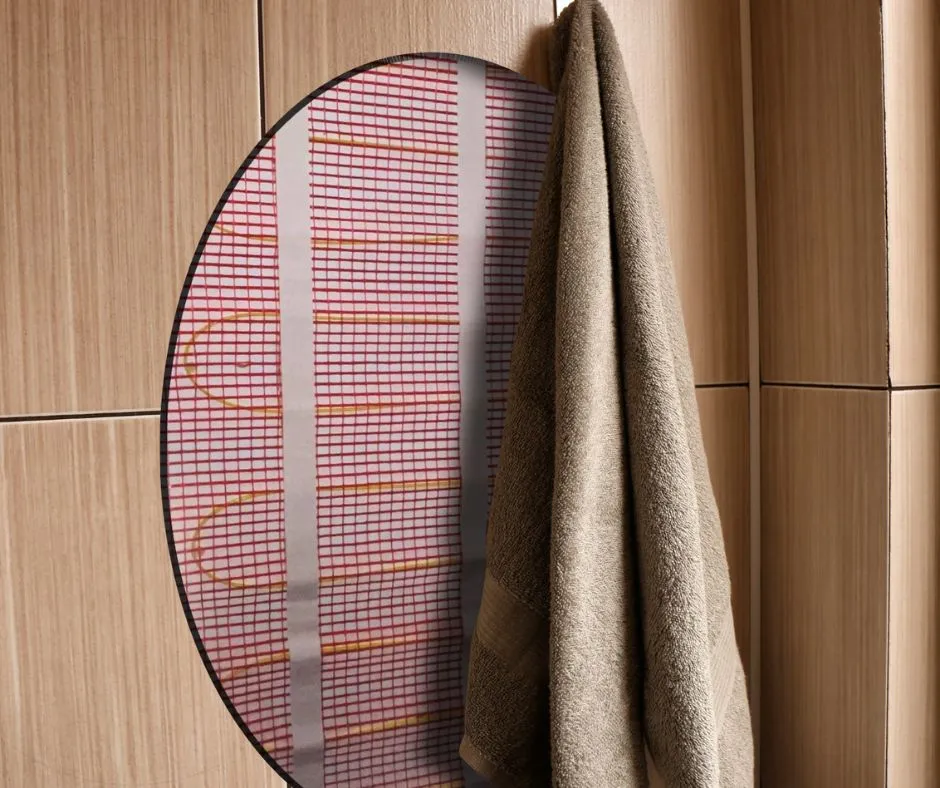

Under floor heating behind the wall with a towel hook to dry towels

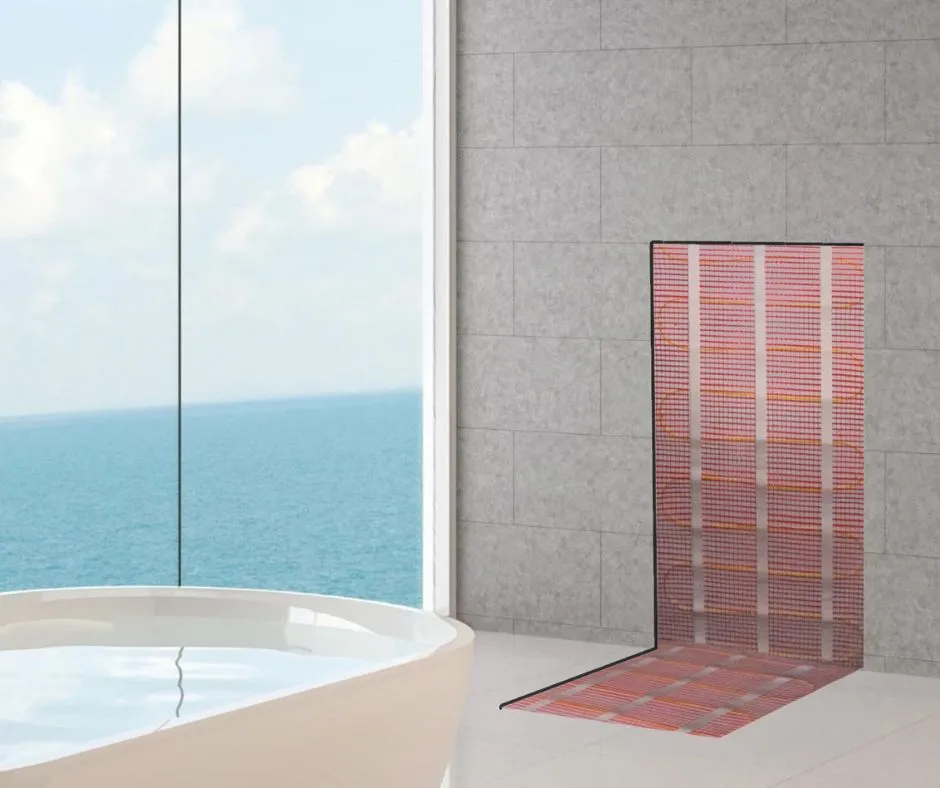

Under Tile heating installed in a bathroom that is also used to heat the wall

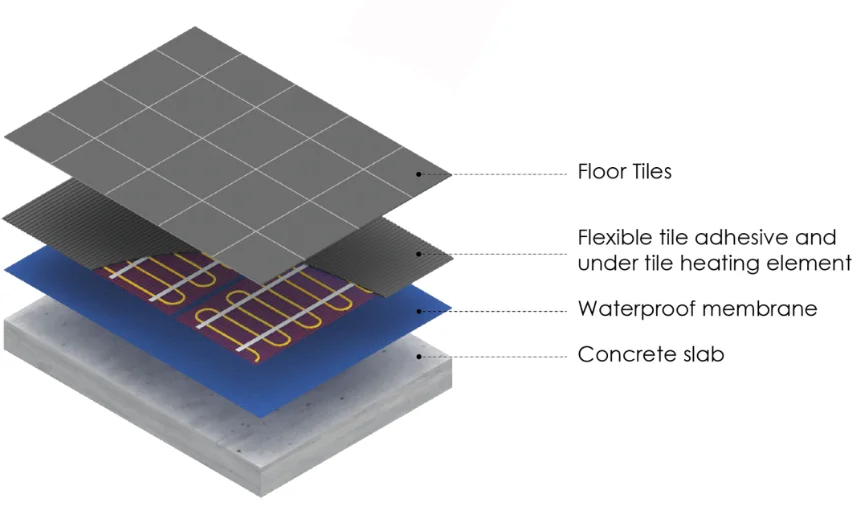

Under Tile heating installed on top of Coldbuster floor insulation board

Under Tile Heating Kits

(Prices Include GST)

under-tile-heating

Clear

General Information

Coldbuster’s Under Tile Heating system brings gentle, radiant warmth to your tiled floors without compromising your floor height. Installed directly beneath the tiles, this system delivers fast efficient heating; discreet and silent, with no visible components.

Features

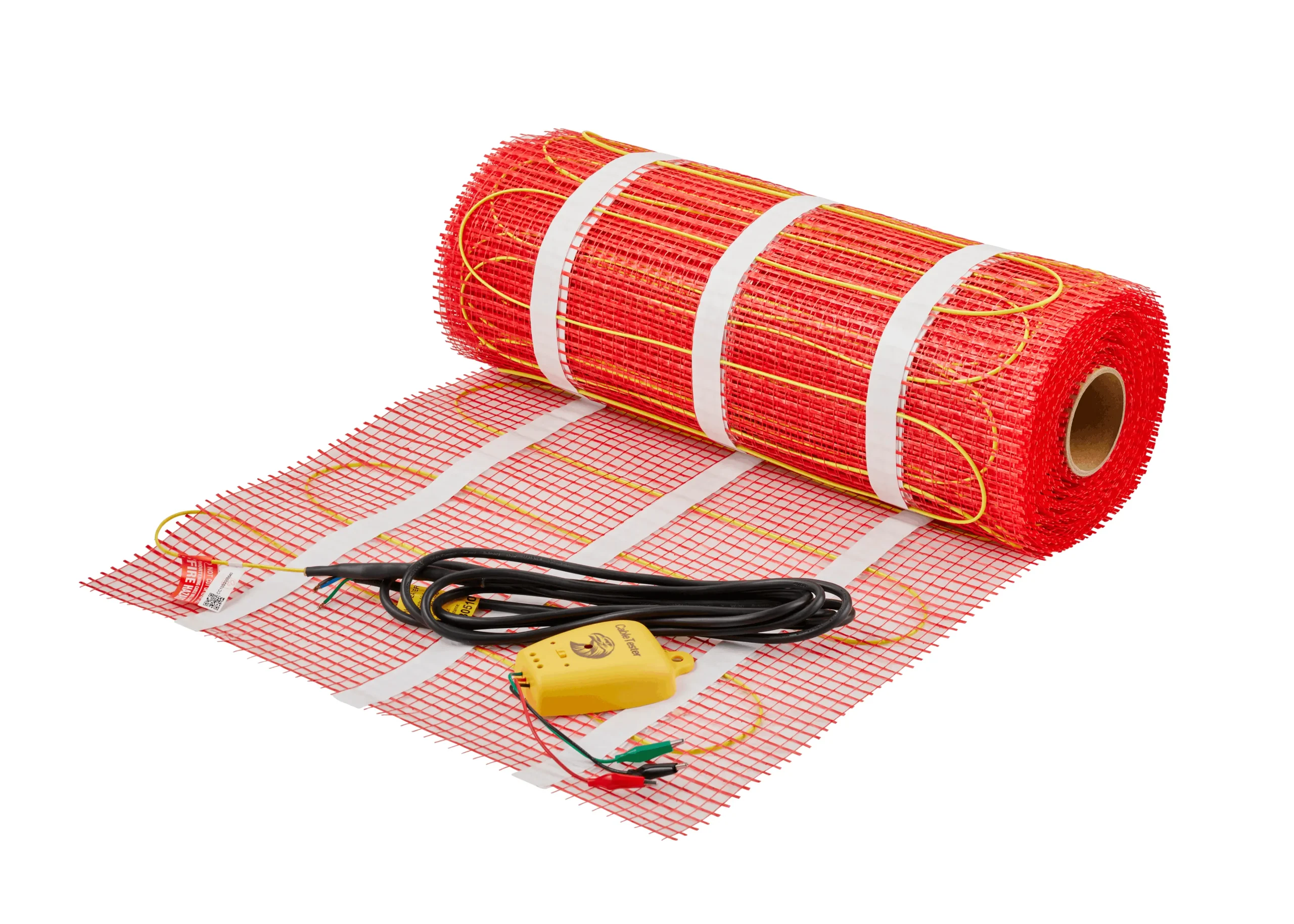

Pre-configured heating element mounted on a self-adhesive fibreglass 500mm wide mesh with a single 3m long cold tail
When using tile heaters under timber, refer to installation instructions provided in under timber heaters

What's Included

Under Tile Floor Heater
Installation Monitor (circuit break monitor) with battery
Installation Manual
25 Year Warranty
Note: Thermostats sold separately

Installation Instructions

Plan heater layout before securing the heating to the subfloor in order to ensure it will fit properly into the floor space available
Unroll the floor heater and secure it using the adhesive tape; can also be glued down for further stability if required
To start a new row, cut the mesh without cutting the heater element and swing the heater in the direction of your next run
Repeat this process until the entire heater is laid
For more in-depth instructions, consult your instruction manual contained in every heater kit. Or you can always contact the friendly team at Coldbuster for further assistance! Call us at 1800 85 75 65.
